Description
Insulation cotton mat specifications:

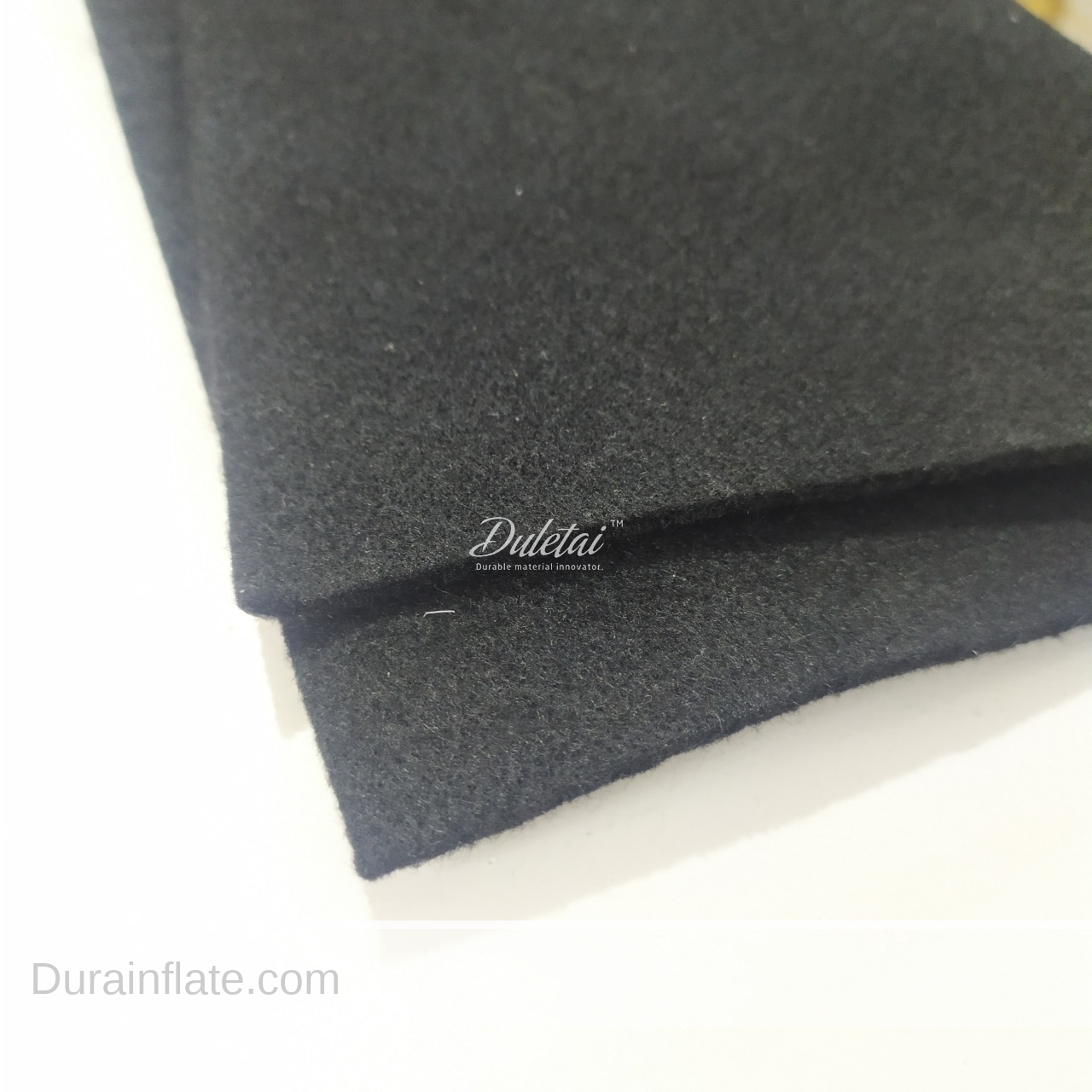

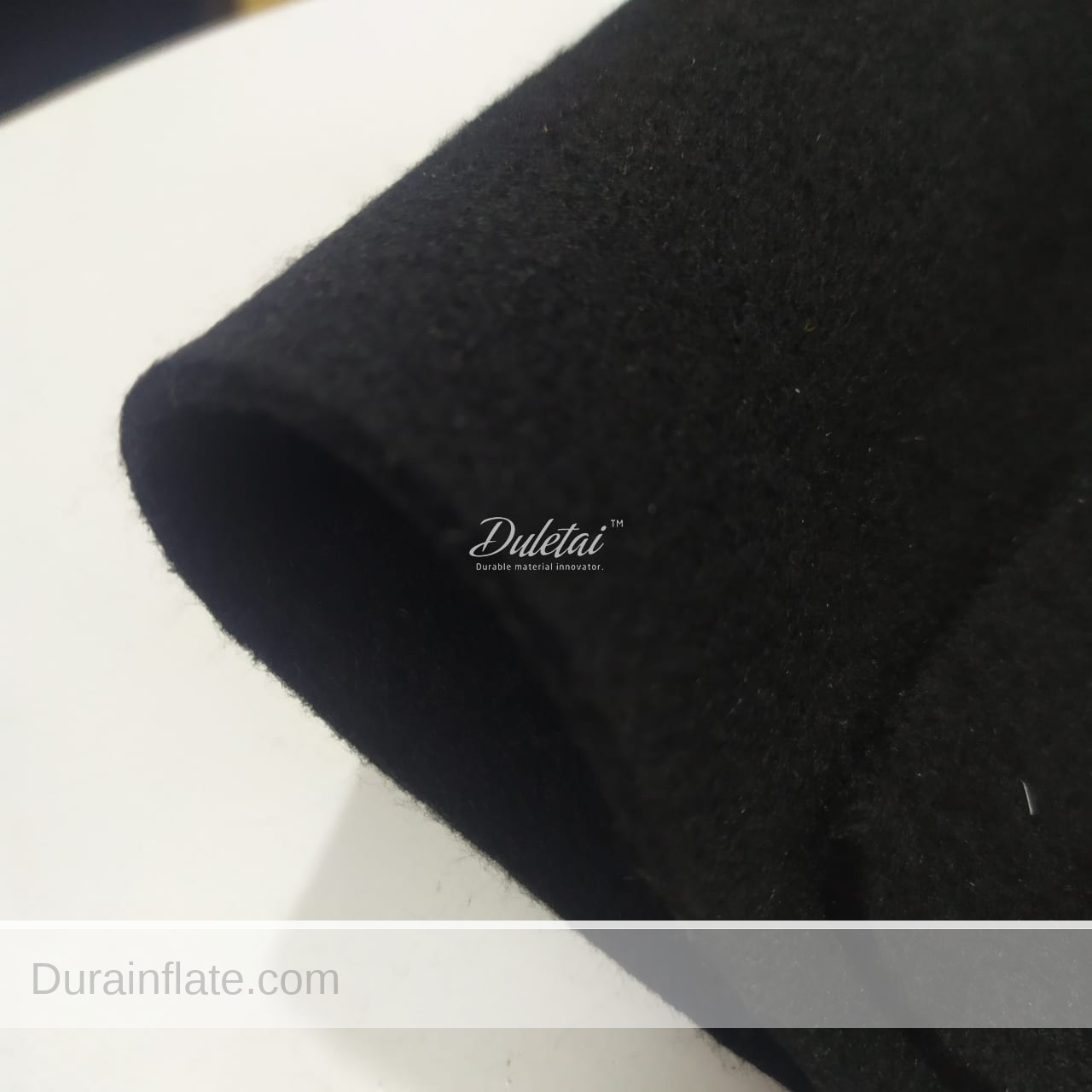

Item name: Insulation Cotton Mat
Material: Flame retardent fiber
Color: Black
Thickness: 2mm / 3mm / 5mm (optional)
Width: 1.0meter
Density: 260kg/m3
Applicable Temperature: -50℃ ~ +500℃
Thermal Conductivity: 0.025/m·k (At 25℃)
Tensile strength: ≥160
Linear shrinkage: ≤3%

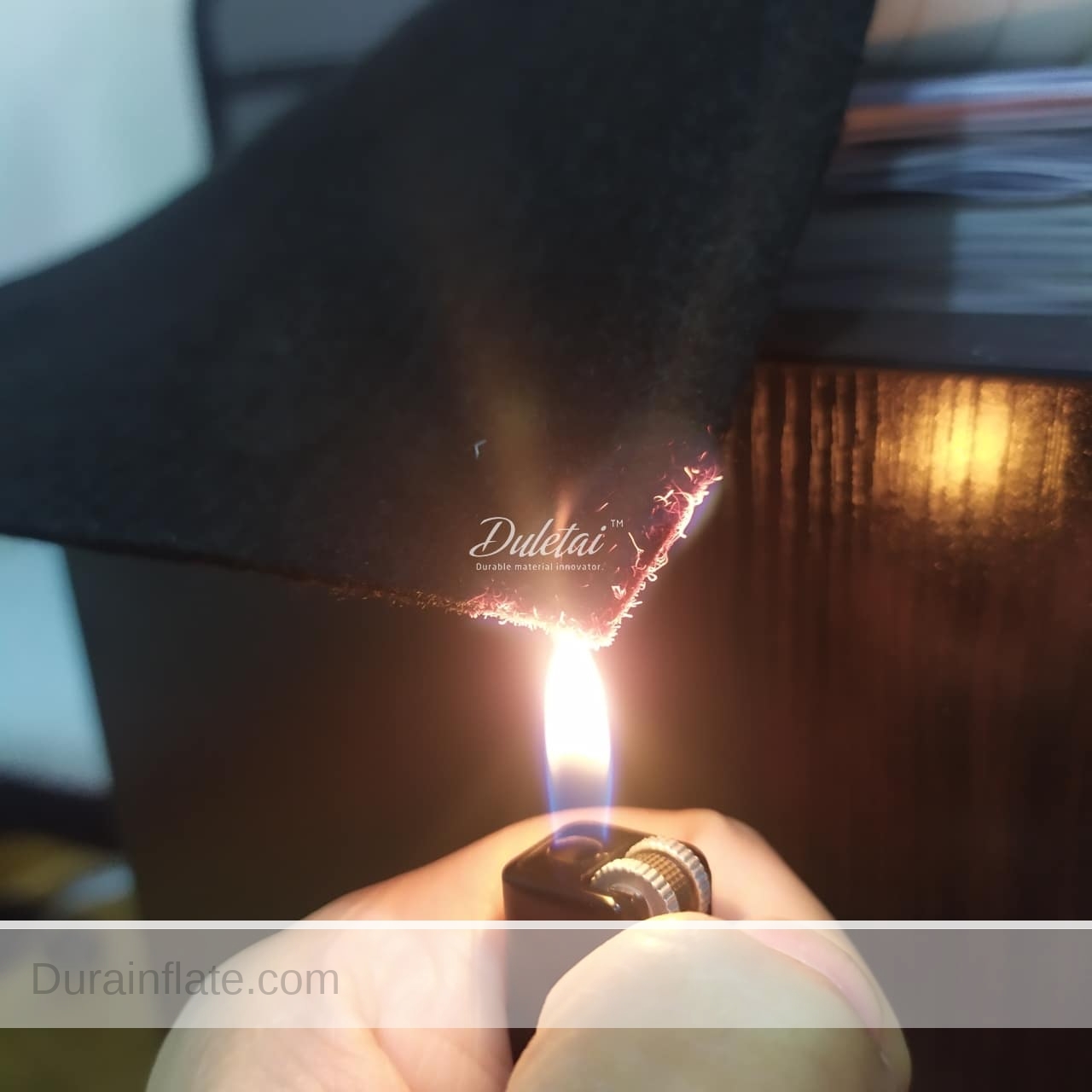

Flame Retardent: VO
Insulation cotton mat features:
- Superior Thermal Performance:
The maximum use temperature is 500℃,Its thermal conductivity is 1/3~1/5 of common insulators, low density and low thermal conductivity, helping reduce heat loss and optimizing space utility. - Long service life:
Unlike other traditional insulation materials, aerogel ’s three- dimensional, structure inhibits sintering warpage, and particles stack which may occur under hot temperature for long time. Therefore, aerogel insulation has long service life. - Physically Robust:
It has flexibility and high tensile strength, resisting stretching and stress from linear contraction when temperature changes. Hydrophobicity and fire resistance to effectively prevent water entering the pipe, internal equipment. - Environmentally Safe:
Composed of inorganic materials, it contains no hazard. Stripping little chloridionm will cause no corrosion to the equipments and pipes. - Sound resistance and Shock Absorption：
Sound resistance and shock absorption help better the environment quality. - Easy to Install:
Extremely low density (260kg/m3) contributes to easy-to-cut and easy-to-install. Reducing the thickness of insulation layer. A small loss of heat insulation, high space utilization rate. Easy to cut and sew to adapt to different shapes of pipes and equipment.
Insulation cotton mat applications:
- Electronic device heat isolation
- Battery shock pad
- Electronic car cell box
- Outdoor jacket
- Sports equipement
- Sleeping pad
- Anti-fire blanket
When we fused insulation cotton mat to our dropstitch fabric, we created a new inflatable insulation solution for vehicle thermal insulation, national defence, military industry, heat supply pipelines in city insulation, biological medicine pipes and equipment and so on.
