Description
In the year of 2022, we developed a new version of PVC dropstitch material called “Wave stitch“. With a unique internal weaving type, we created a light weight inflatable dropstitch material. This wave looking surface is ideal for outdoor camping mats and furnitures. And more, the other special feature is an easy-curve capability makes this material ideal for inflatable tubs and other products with a natural, smooth curving shape. Regular double wall fabric is not able to curve due to the internal yarns structure.
Material Datasheet:
This material is still a classified project. So we can only publish limited information. The weight is around 1600gsm, 60% of regular dropstitch material. Max pressure: 13psi Material thickness can be 5cm-30cm

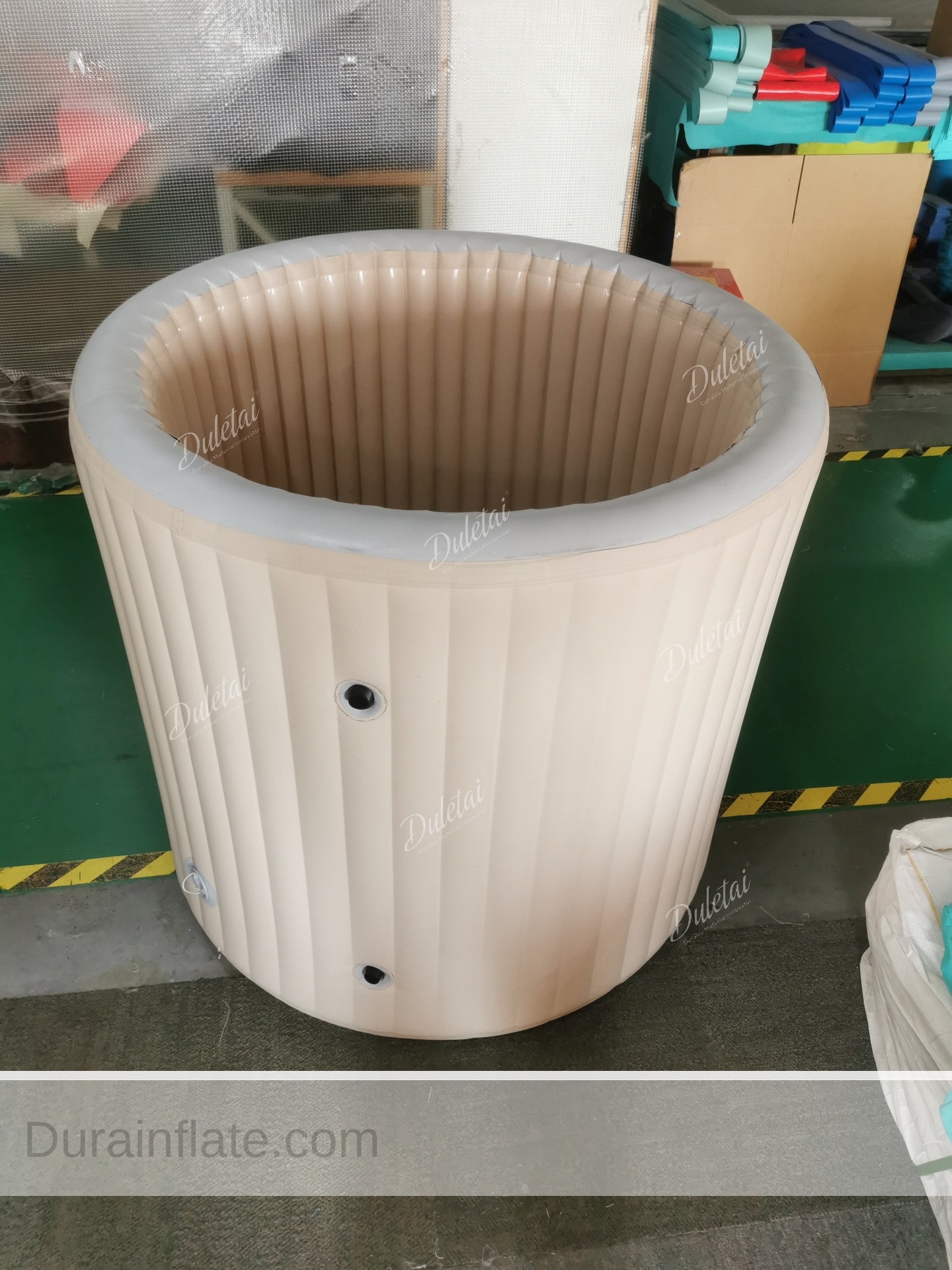

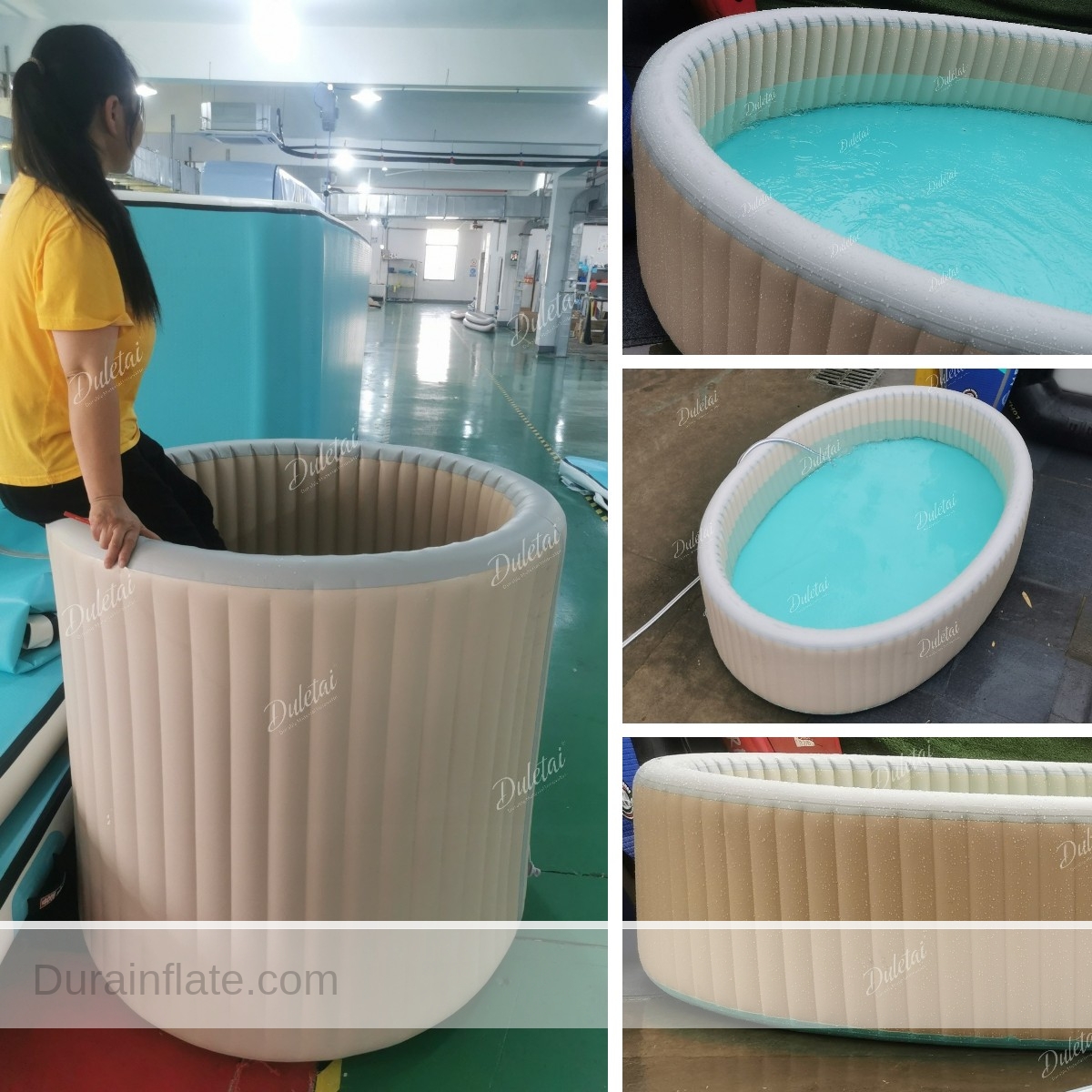

Thanks to the progress of material technology, now we can make new inflatable tubs with natural curves. Now the production rate has improved 50%, so labor cost will be bring down step by step. Mean while, the product is 30% lighter compare with regular pvc dropstitch. The physical feature is still outstanding and durable.
Technical Datasheet:
PVC Inflatable Tub | DuraInflate | |
Material | PVC dropsitch + 0.5mm PVC tarpaulin |
Main body: | 5cm/8cm dropstitch with double layer 0.5mm air tight pvc material, |
Bottom: | 3-layer combination: 0.5mm pvc material + EVA foam insulation + 0.7mm pvc material |
External Dimensions | Customized |
Internal dimensions: | Customized |
Safety: | Heat isolation protective cover |
Plastic parts: | Water in / Water out hose |
Accessories: | Hand pump, Strap belt, Carry bag, Manual, Cover, Repair kit |
Valve: | Bravo brand high pressure valve |
Recommended pressure: | 0.7 bar / 10psi |
Colour: | Customized |
Temperature: | -20~+70(°C) |
Options: | Customized shape and dimension, Customized screen printing, UV printing, material colour |
Packing: | PE bag, Foam, Paper box 103L 55W 58H |
MOQ: | 300pcs for customized material, 50pcs for instock material |
