Description

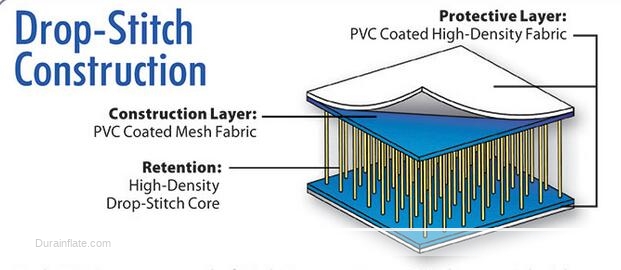

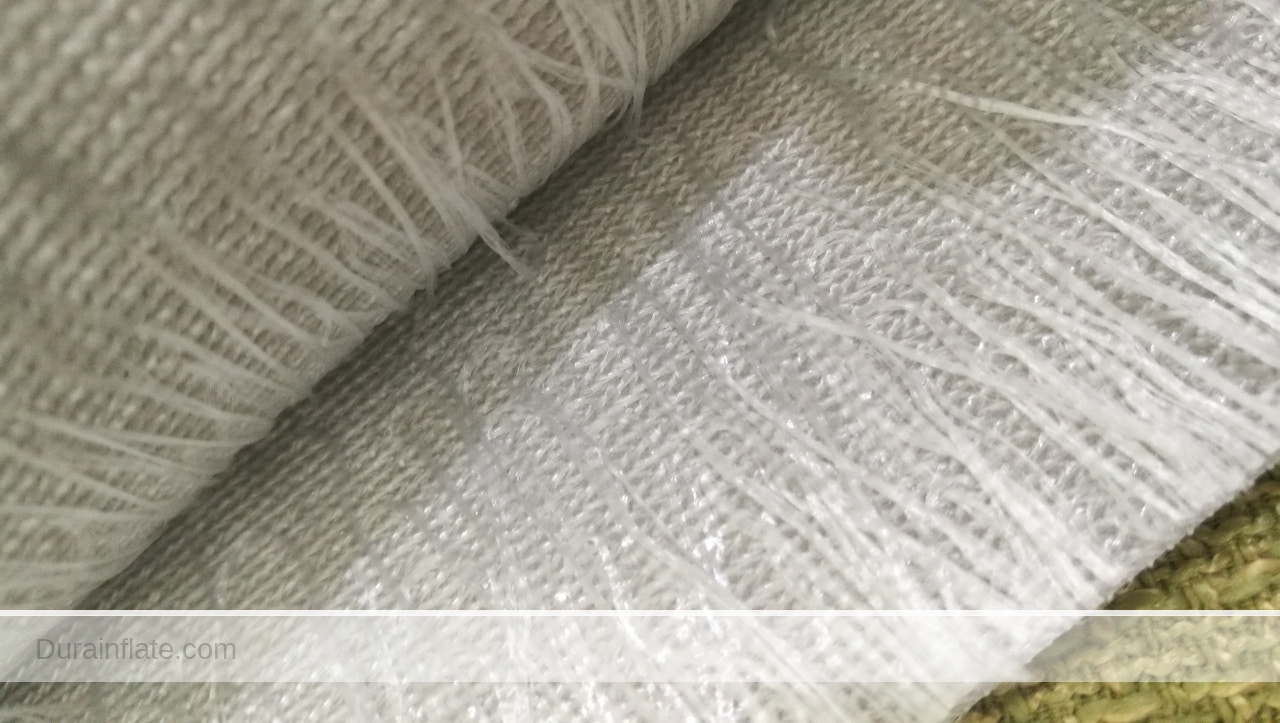

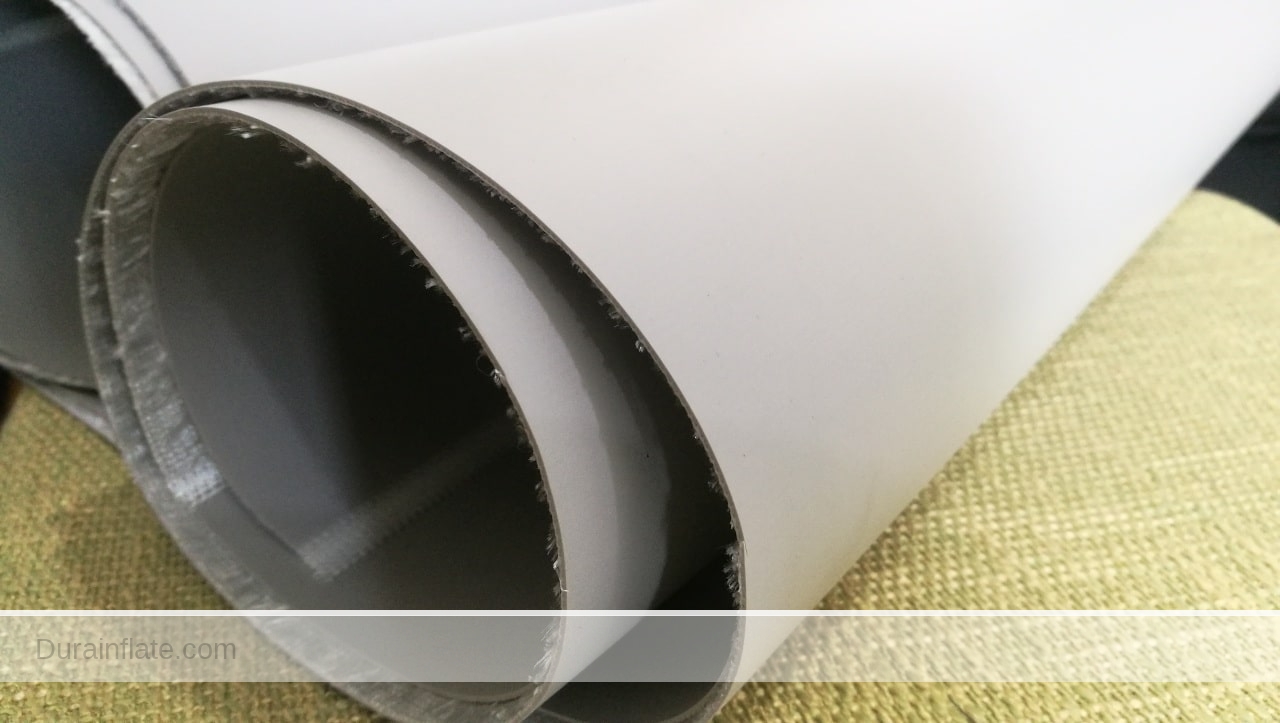

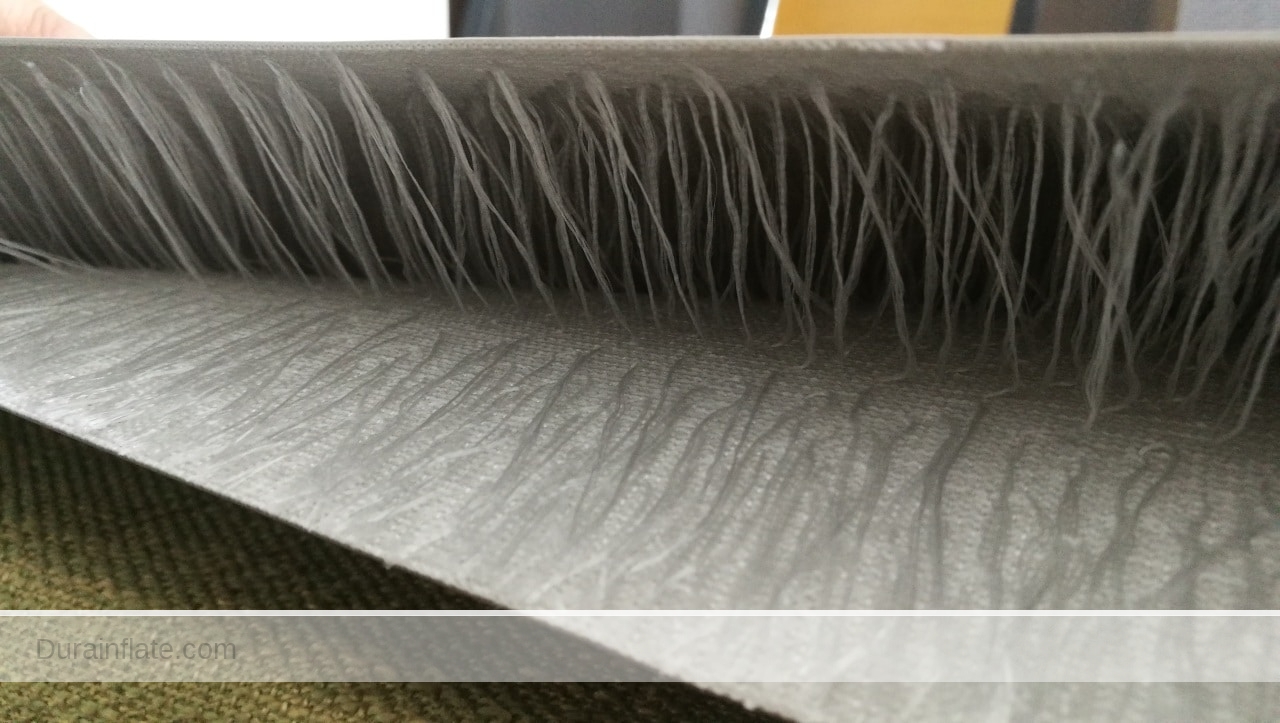

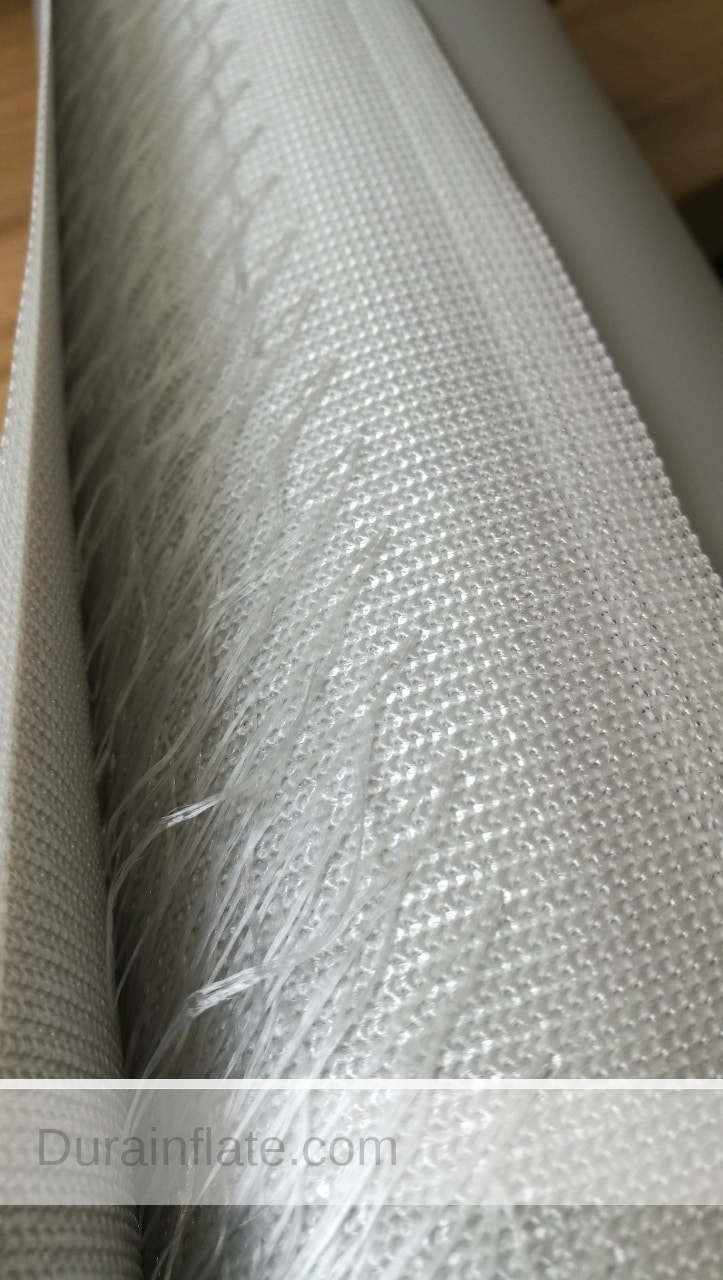

Drop stitch fabric (double wall fabric) is featured by high strength, excellent quality stability and self-cleaning of surface, anti-aging and various weather resistance performance. Drop stitch fabric utilizing 2 sheets of fabric, held togther with drop stitches. When made up and also inflated it. Drop Stitch product is made into a really light-weight blow up product that could create blow up structures as well as. The strong building and construction allows our drop stitch fabric to offer a 3 year manufacturer’s guarantee. And our drop stitch fabeic have many variations and types either in regard to colors, width or degree of flame-retardant finishing.
Material: 100% Polyester
Type: Coated fabric
Pattern: Coated, Dot, Wave, In-line
Coated type: PVC Laminated, PVC laminated
Style: Plain
Width: 0.9-2.6m up to 3.2m
Technics: Woven
Feature: Flame Retardant, Shrink-Resistant, Tear-Resistant, Waterproof, Waterproof,Flame Retardant,Tear-Resistant
Certification: EN, SGS, ISO9001-2001 ISO14001-2004 and ISO18001-2001
Yarn count: 500D*500D
Weight: 2200-3300gsm, 22200-3300gsmGSM
There is increasing concerns from Europe and US regarding Phthalates. Phthalates refers to Phthalate Esters / PAEs, which are common addictive to soften plastics especially PVC in past 40 years and 80% of Phthalates are used in plastic products. It exists in others include inks, adhesives, sealant agents, paints, film coatings, glass fibers, leather, rainwear, footwear, dyestuff, perfume, softener, polish remover, lubricant, cosmetics and isolation for cables. Phthalates has toxic for reproduction. Based on the application and customer’s safety concerns, there are tests based on different Phthalates. The common testing are 3P, 6P, 7P, 15P and 16P. Our product has passed reach standard, and for higher requirement, we can make 6P. Which refers to 6 types of Phthalates below.
Standard: No more than 0.1% or 1000ppm
BBP – Benzylbutyl Phthalate
DIDP – Diisodecyl Phthalate
| Product | 5cm | 8cm | ||
| Pattern | Dot | Wave | ||
| Base Cloth | Polyester 500D( High tensile) | Polyester 500D( High tensile) | ||
| Space Length | cm | 5 (+/-5%) | 8 (+/-5%) | |
| Material Total Weight | g/sq.m | 2600 (+/-200) | 2620 (+/-200) | |
| Tensile Strength (2 layers) | N/5cm | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | |
| Adhesion Strength (2 layers) | N/5cm | 150 x 150 (+/-20) | 150 x 150 (+/-20) | |
| Pressure | Recommended | PSI(lbs/inch2) | 15 | 15 |
| Maximum | PSI(lbs/inch2) | 30 | 30 | |
| Standard width | Metre | 2.06 | 1.55/1.68 | |
| Surface | Matt | Matt | ||
| Length (standard) | Metre | 30,100,150,250 | 30,100,150,250 | |
| Product | 10cm | 12cm | ||
| Pattern | Dot ,In-line | Dot | ||
| Base Cloth | Polyester 500D( High tensile) | Polyester 500D( High tensile) | ||
| Space Length | cm | 10 (+/-5%) | 12 (+/-5%) | |
| Material Total Weight | g/sq.m | 2650 (+/-200) | 2680 (+/-200) | |
| Tensile Strength (2 layers) | N/5cm | 4100 x 2800 (+/-300) | 4100 x 2800 (+/-300) | |
| Adhesion Strength (2 layers) | N/5cm | 150 x 150 (+/-20) | 150 x 150 (+/-20) | |
| Pressure | Recommended | PSI(lbs/inch2) | 15 | 15 |
| Maximum | PSI(lbs/inch2) | 30 | 30 | |
| Standard Width | Metre | 1.68/1.85 | 1.68/1.85 | |
| Surface | Matt | Matt | ||
| Length (standard) | Metre | 30,100,150,250 | 30,100,150,250 | |
| Product | 15cm | 20cm | ||
| Pattern | Dot ,In-line | Dot | ||
| Base Cloth | Polyester 500D( High tensile) | Polyester 500D( High tensile) | ||
| Space Length | cm | 15 (+/-5%) | 20(+/-5%) | |
| Material Total Weight | g/sq.m | 2700 (+/-200) | 2800 (+/-200) | |
| Tensile Strength (2 layers) | N/5cm | 4100 x 2800 (+/-300) | 3600 x 4100 (+/-300) | |
| Adhesion Strength (2 layers) | N/5cm | 150 x 150 (+/-20) | 150 x 150 (+/-20) | |
| Pressure | Recommended | PSI(lbs/inch2) | 15 | 15 |
| Maximum | PSI(lbs/inch2) | 30 | 30 | |
| Standard Width | Metre | 1.68/1.85 | 2.00 | |
| Surface | Matt | Matt | ||
| Length (standard) | Metre | 30,100,150,250 | 30,100,150,250 | |
| Product | 30cm | ||
| Pattern | Dot | ||
| Base Cloth | Polyester 500D( High tensile) | ||
| Space Length | cm | 30(+/-5%) | |
| Material Total Weight | g/sq.m | 2850 (+/-200) | |
| Tensile Strength (2 layers) | N/5cm | 3600 x 4100 (+/-300) | |
| Adhesion Strength (2 layers) | N/5cm | 150 x 150 (+/-20) | |
| Pressure | Recommended | PSI(lbs/inch2) | 15 |
| Maximum | PSI(lbs/inch2) | 30 | |
| Standard Width | Metre | 2.00 | |
| Surface | Matt | ||
| Length (standard) | Metre | 30,100,150,250 | |
Drop stitch fabric applications:
1. Inflatable boat bottom
2. Mattress
3. Inflatable swimming pool

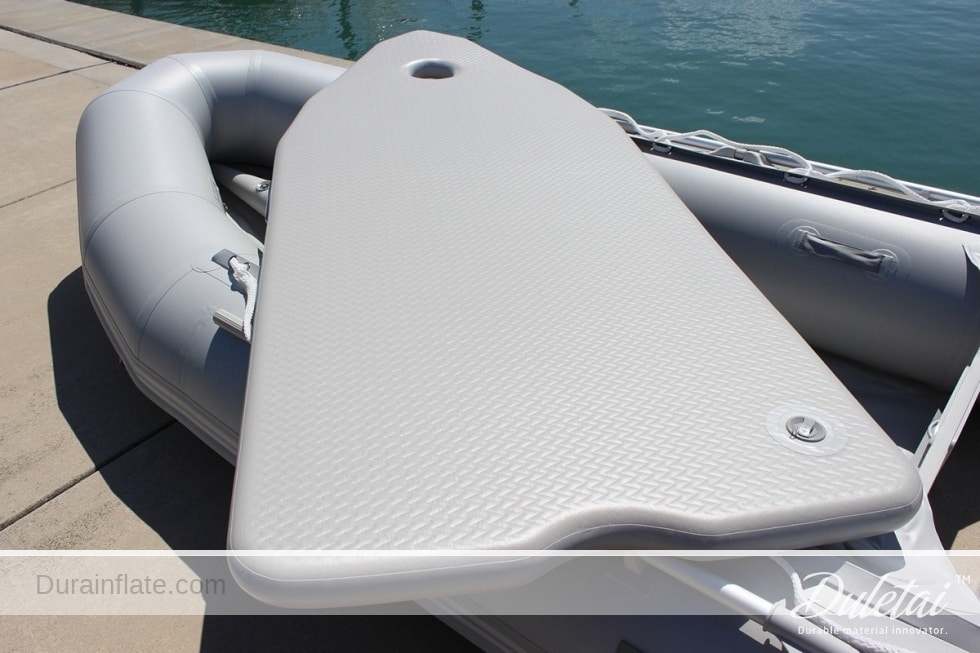

4. Air deck
5. Surfboard
6. Sup board
7. Air mat
8. Gymnasium mats
